2 Wheel Surface Roller Assy w/BRH-188

Name: 2 Wheel Surface Roller Assy w/BRH-188
Brand: 3ecarwashmfr
SKU: 1001-109
Price: 181.49 USD
Availability: InStock

Item #: 1001-109

3E’s Replacement for Flapan Surface Roller

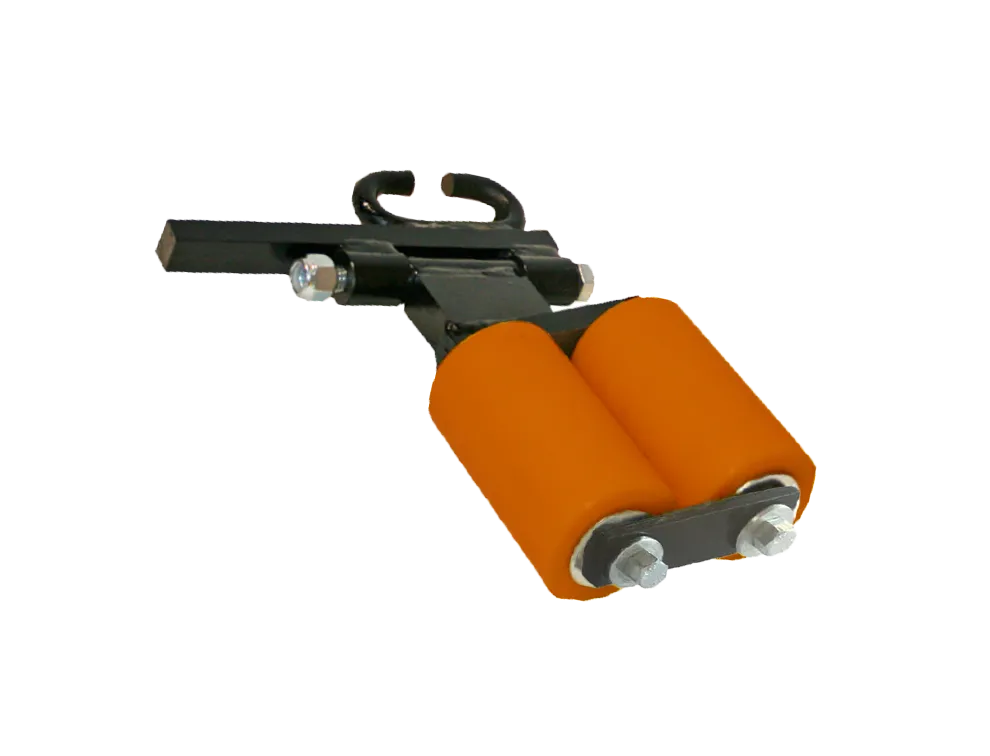

2-Wheel Surface Roller Assembly
Dimension: 3in x 5-1/2in Pusher Wheels
Carrier Link: BRH188

TWO-WHEEL 3" SURFACE REPLACEMENT ROLLERS - PARTS

Part	Quantity	Item Number	Description
A	1	1001-203	Frame Only for 2-Wheel Surface Rolle r
B	2	1001-302	Pusher Wheel 3" Dia. x 5-1/2"
C	1	801-100	Retainer plate only for Hanna 3" Wheels
D	1	201-92	Hanna Link Head w/BRH188
E	1	201-72	Hanna Link Head with D88K
F	1	201-69	Hanna Link Head w/Log link
G	1	1002-102	Hex Bolt 5/8-11 x 7" Zinc Plated Steel - Full Thread
H	2	1002-301	Hex Nut Nylon-Lock 5/8-11" Zinc Plated Steel
I	4	1002-205	Flat Washer SAE 1" Zinc Plated Steel
J	*	1002-202	Flat Washer USS 1/2" Zinc Plated Steel
	*	1002-206	Flat Washer SAE 1/2" Zinc Plated Steel
K	*	1002-101	Hex Bolt 1/2-13 x 3/4" Zinc Plated Steel Grade 2
	*	1002-104	Hex Bolt 1/2-13 x 3/4" Zinc Plated Steel Grade 5
